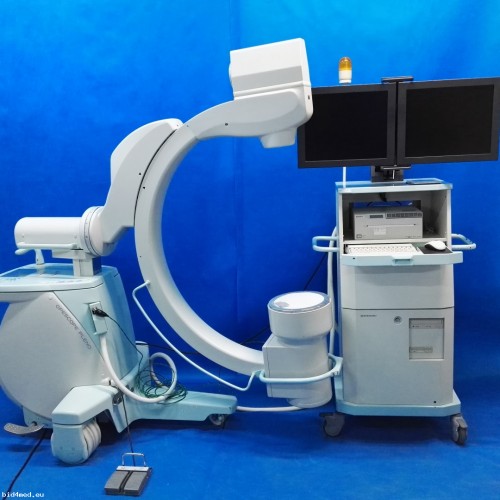

Available for sale SHIMADZU OPESCOPE PLENO C-Arm
YOM: 2004

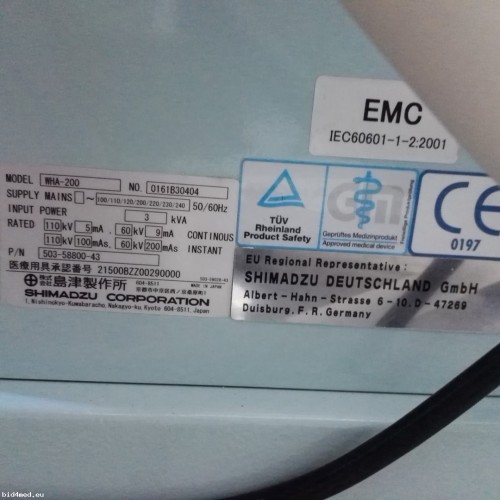

Model: WHA-200
Active options:
Fluoroscopy
Substraction
Technical specification:
X-ray tube
Focal spot size 0.6 mm
Target angle 8 °
X-ray tube assembly
Total filtration 2.9 mm Al equivalent
Spectral filters 0.1 mm Cu, 0.2 mm Cu, 0.3 mm Cu
C-arm / geometry
Source-image receptor distance 90.0 cm
Source-isocenter distance 55.0 cm
Source-IRP* distance 40.0 cm
Source-FDA* point distance 60.0 cm
Field of view 23.0 cm / 16.0 cm (diamter)
Fluoroscopic mode
Pulse rate 0.5, 1, 2, 3.75, 7.5, 15, 30 (continuous) *
Tube potential 40-110 kVp
Maximum tube current 9.0 mA
Very good working and cosmetic condition, tested by our biomed engineers and found to be ready for use.
Should you have any further questions, please do not hesitate to contact us.
